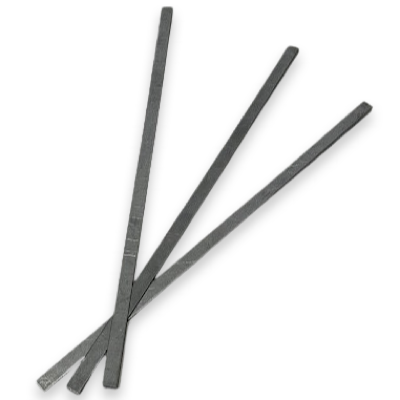

Used to convert Kenometer from NQ2 to NQ size or H TO H3 (kit includes set of 3 shims, .95mm)
Fitting Shims
Each Kenometer requires a set of three shims be installed to achieve a good core fit and therefore accurate readings. We recommend that when installing shims permanently you use a product such as Araldite or Maverick Bond.
As shown on additional product photo, fit shims in equal distance from each other (X) along the body or ‘U’ of the tool. Shim A should be fitted at what is in line with 225 deg., Shim ? at 180 deg. and Shim C at 135 deg. The shims should be installed along the
length of U and such that an equal distance (x) is main- tained between the shims for the length of the unit.
