Clinometers

HAGLOF EC II-D Clinometer (meter/percent)

HAGLOF EC II-D Clinometer (meter/percent)

SKU:OR3203

Regular price $369.00 CAD
Regular price Sale price $369.00 CAD
Sale Sold out
Shipping calculated at checkout.

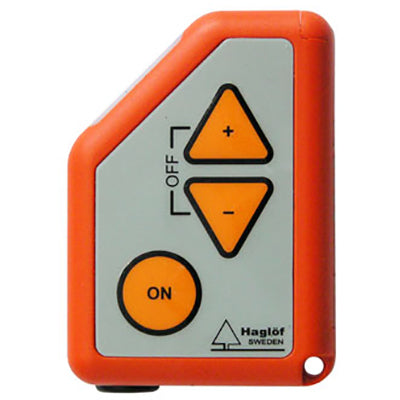

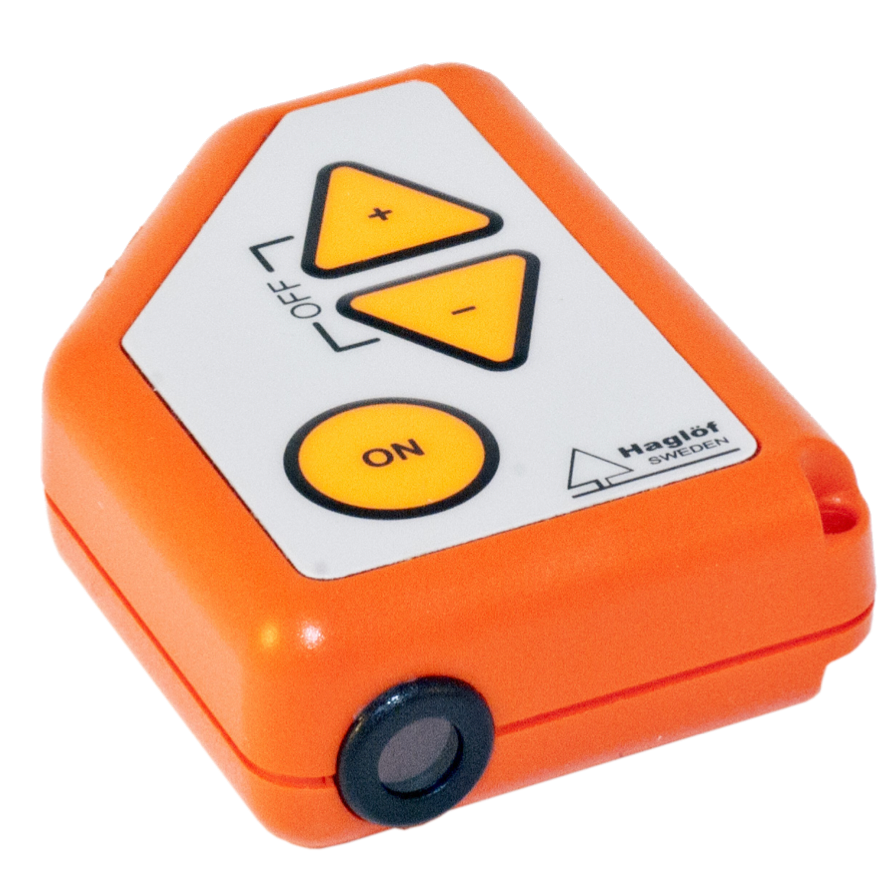

Haglöf EC II Electronic Clinometer, Meters and Percent

This easy-to-use field instrument offers accurate measuring results of inclination and heights. With the help of a reference height on the target object, the EC II-D can calculate the distance. Accurate results are presented when measurement is complete, without the need for calibration or manual counting. Requires no maintenance. Features a low battery indicator and backlight.

Height measurements can be taken from any distance that is measured and entered. Choose from these functions: DIST (distance setup and height measuring), HGT (height measuring), and DEG (angle measuring). Results are displayed once measurement is complete, and no manual counting is required. Lightweight yet rugged, the clinometers can withstand the toughest use in the field. These highly efficient instruments offer extremely low battery consumption and feature a low battery indicator and backlight.

Accuracy: ±0.2’; ±0.2° (depending on the accuracy of the distance entered). Operating Temperature: -15°C to 45°C/5°F to 113°F. Power: 1 AA battery (included).

Click her for a Instruction Sheet (as PDF file)

Size 20x63x44mm/0.8 x 2.5×1.7”.
Weight 50 g/1.8 oz (incl. battery).
Temperature Min -15° Max 45°C/Min 5° Max 113°F.
Battery 1 x 1.5 V AA alkaline. Warning when low
Display LCD, Backlit.
Summer Yes
Consumption 15mW
Height Min 0 Max 999 m/ft. Resolution: 0,1m/ft < 100m/ft or 1m/ft>100m/ft.
Angles -55˚ < angle < 85˚. Resolution: 0.1˚. Accuracy: +-0.2˚
