BRUNTON 5020 Standard Transit 0-360

The Brunton 5020 Transit retains full functionality of a classic Brunton, but offers the best low-angle strike and dip measurements, enhanced durability, and a sleek new design.

We stock the 5020 transit balanced for North America and all the Southern Hemispheres. Please select North America option unless you are working in the Southern Hemispheres in which case please select the correct balance region you are working in.
Or simply pick North America and add a note on your order of the country working and we will confirm that you get the correct balance. You can also visit the Brunton Needle Balancing Page to identify your main zone Click here

FEATURES:

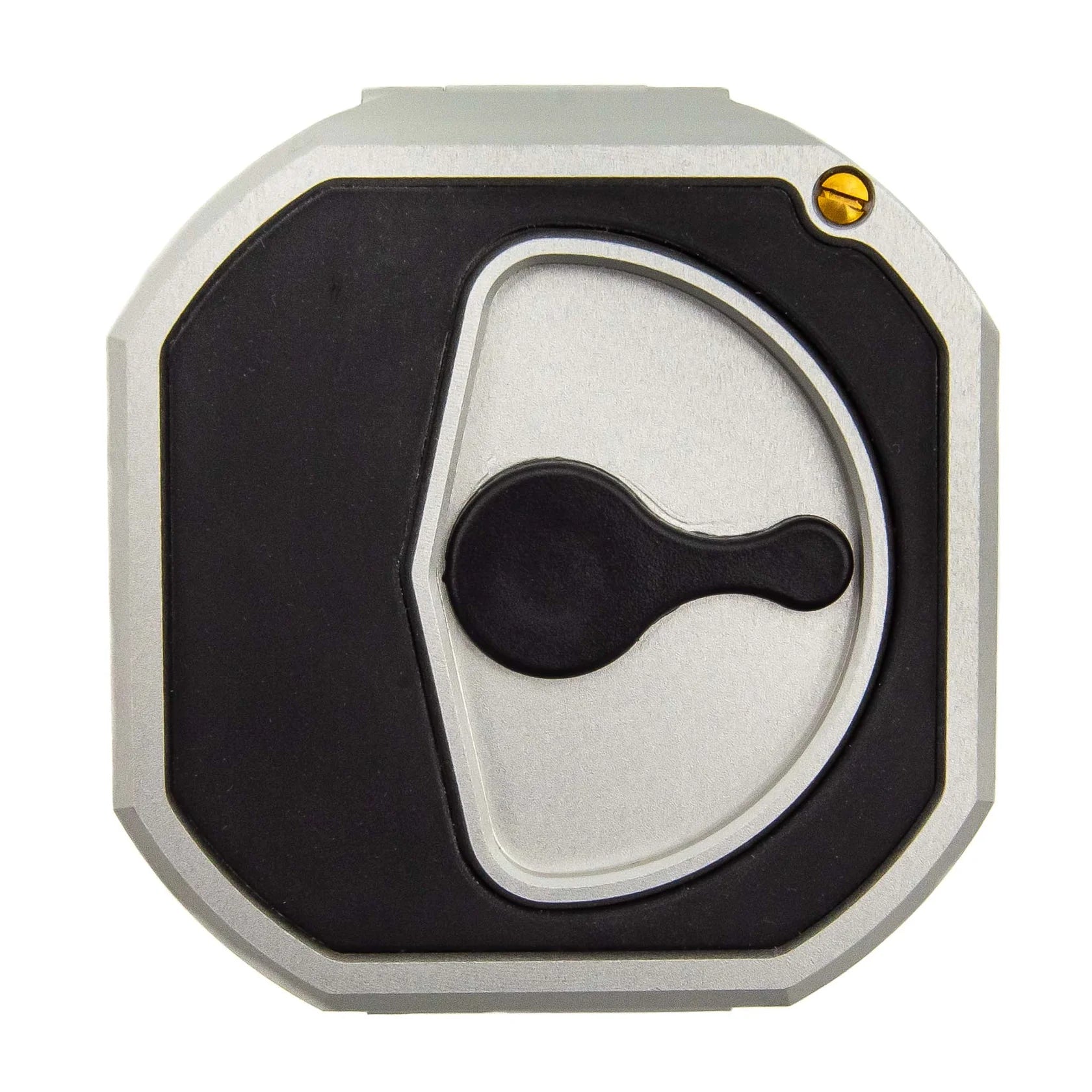

The flat bottom with a non-slip silicon foot allows for low angle strike and dip measurements.
Designed with durability in mind, the Standard Transit is CNC machined from a nearly indestructible aluminum block while the hard-anodized finish resists scratches that will keep this transit looking brand new for years to come.
The updated needle with a NeFeB disk magnet improves shock resistance and resists demagnetization over time.
Open your beverage at the end of a long field day with an unobtrusive bottle opener that stays out of the way until needed.
The induction dampening makes for a quick-settling needle.
The sapphire jewel bearing allows for smooth needle movement throughout the life of the instrument.
The internal components are sealed with an O-ring for improved water and dust resistance. Note: Brunton Transits are NOT designed for use underwater, but are protected from rain and humidity.

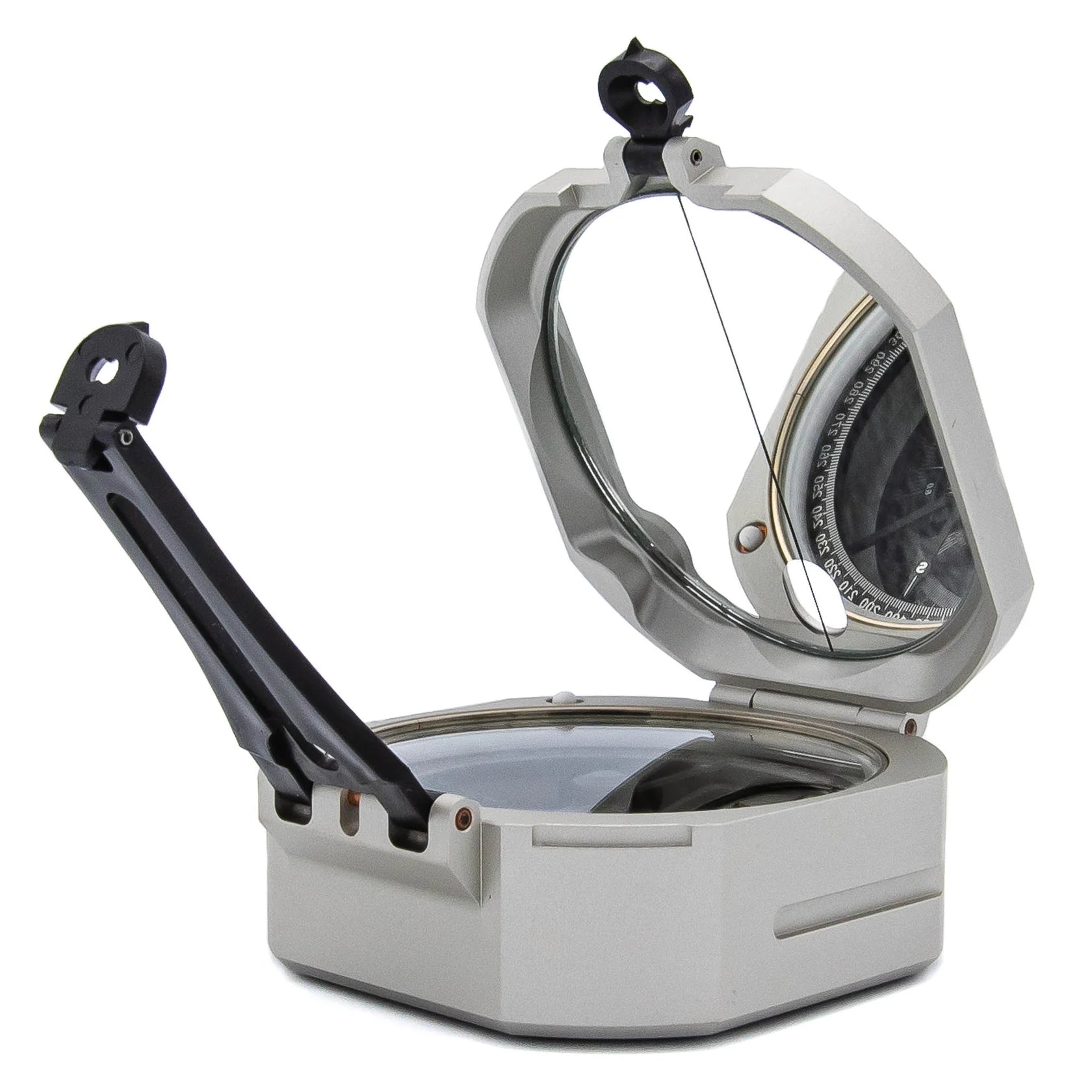

The mirror has a transparent sight for shooting accurate bearings within 1/2°.
Short and long sights provide additional functionality and accuracy when shooting bearings.

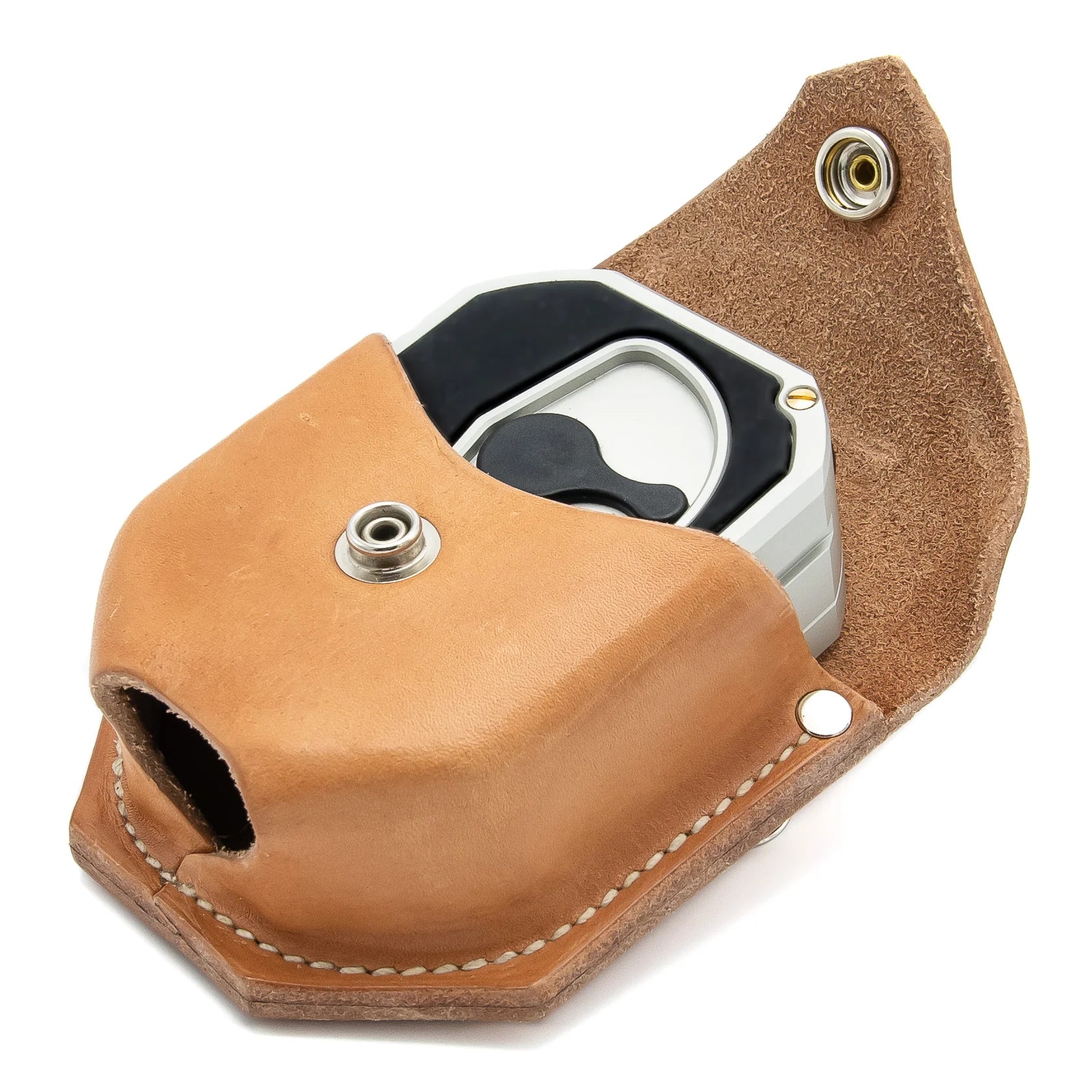

A protective leather case is included and the belt attachment makes it easy to carry your Brunton Transit in the field.

SPECS:

Dimensions: 3.1 x 2.8 x 1.3" | 7.9 x 7.1 x 3.4cm
Weight: 6.9oz | 195g
Azimuth: +/- 1/2° w/ 1° graduations
Internal Clinometer: +/-1/2° w/ 1° graduations
Percent Grade: 5% graduations
Declination Adjustment: +/-180°

Warranty and Repair:
The Brunton Limited Warranty is valid for one year from the date of purchase. Products seeking warranty must be accompanied by proof of original purchase and serial number (if a professional transit).

OBTAINING ACCESS TO BRUNTON LIMITED WARRANTY
Should a defect occur in your Brunton branded product which is not due to negligence or by fault or accident, and if the product qualifies for the Brunton Limited Warranty, we shall, at our option, either repair or replace it without charge, and will pay the cost of return shipment to you. If a repair, you must pay for cost of shipment to Brunton.
Click here Brunton Transit Service Request Form
