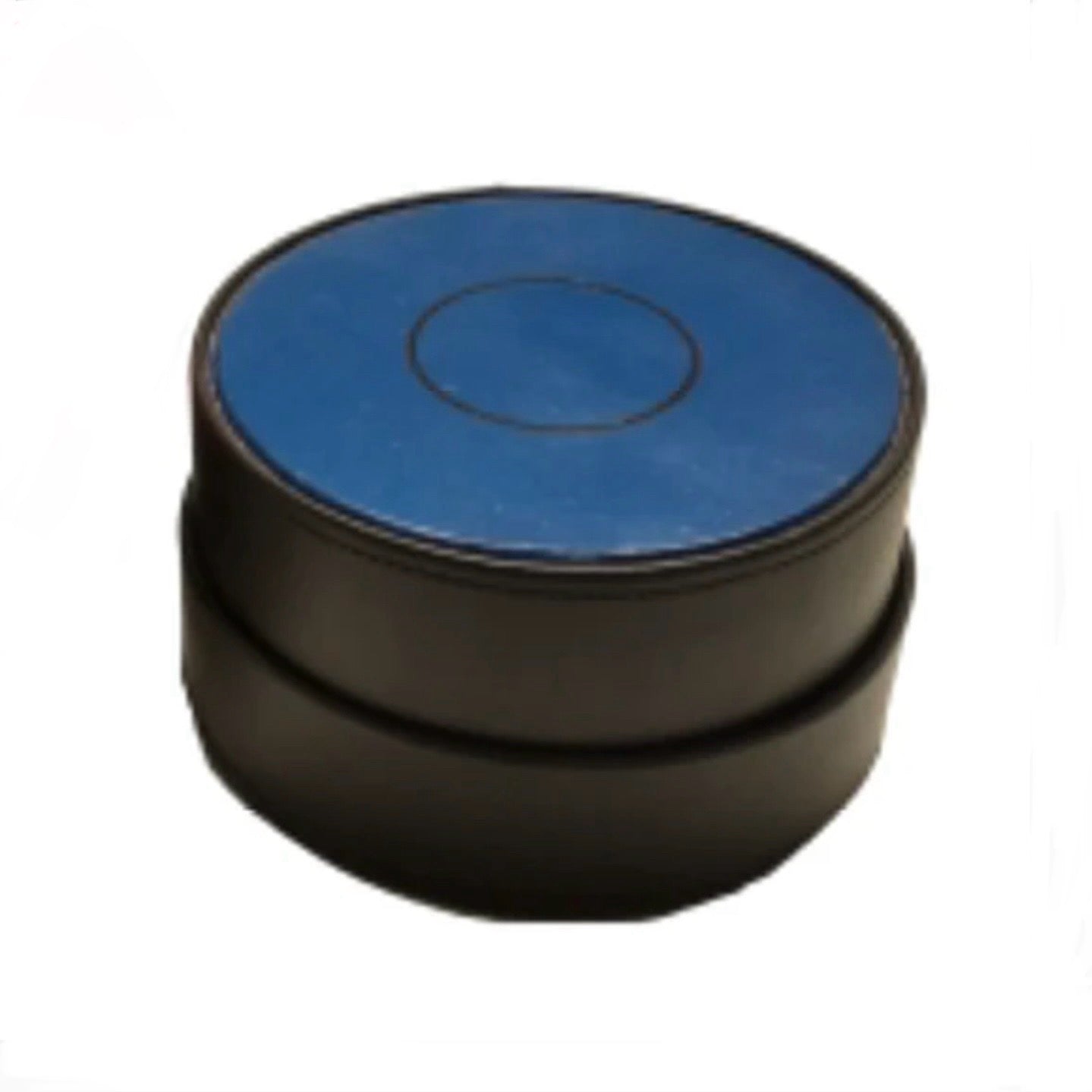

Flat Magnetic Susceptibility Calibration Pad (KT-10 Plus - High Susceptibility Values)

Calibration pad are used to recalibrate a KT-10 Plus that is capable of measuring magnetic susceptibility. They also serve as a check source to confirm the instrument’s measurements are accurate.

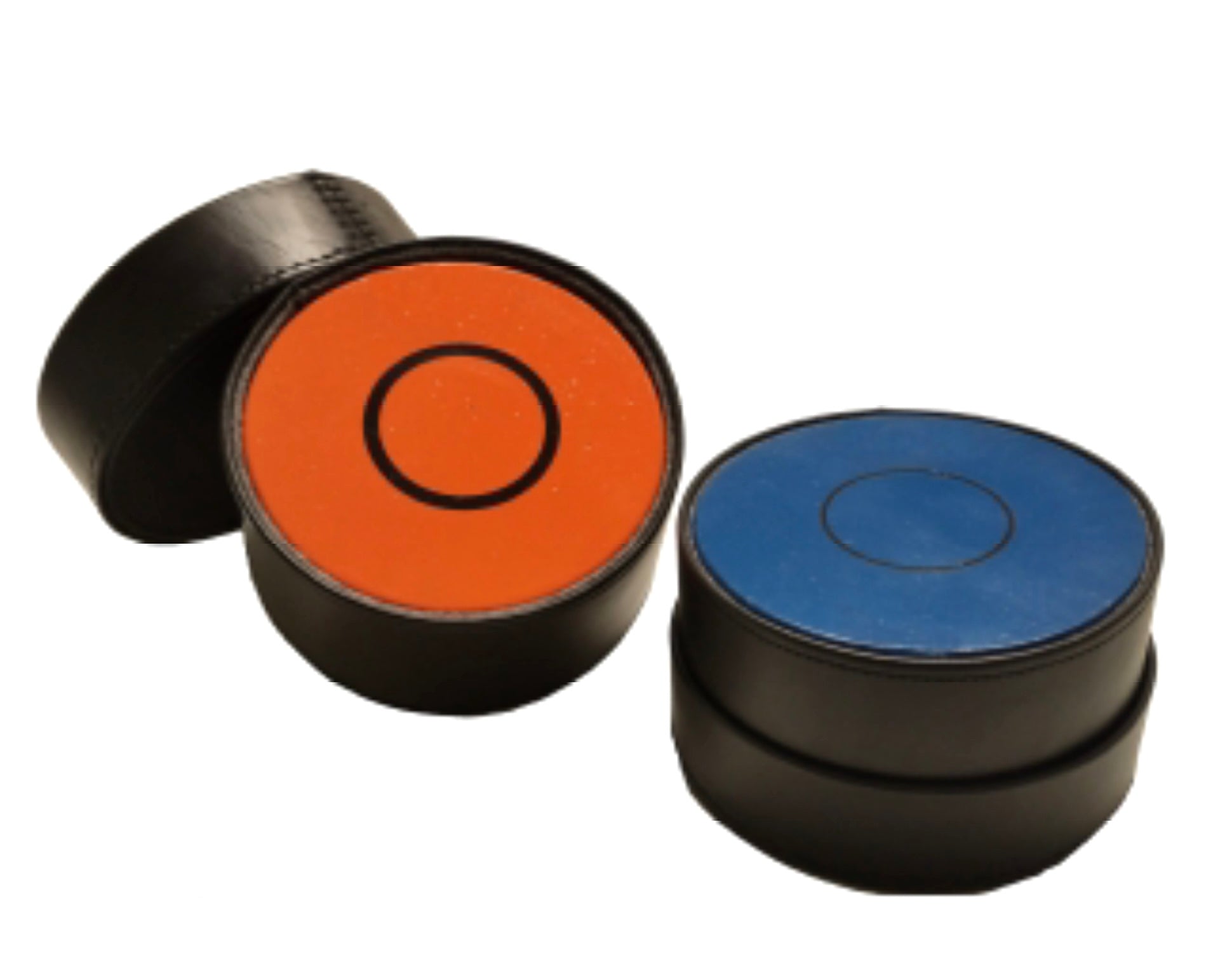

The flat calibration pads are for use with any magnetic susceptibility-enabled KT-10 coil sensor with a circular or rectangular shape. They are available with low and high nominal magnetic susceptibility values to confirm the instrument’s operation in either range. The calibration pad with high nominal values is for use only with magnetic susceptibility meters with the Plus upgrade activated. Each pad is delivered in a leather case for protection.

Choose the correct calibration pad for your KT-10 as follows:

KT-10 - Low Range ~ 34 x 10-3 SI (Diameter: 145mm, length: 70mm, Weight: 2.65 kg
KT-10 Plus - High Range ~ 2500 x 10-3 SI (Diameter: 145mm, length: 70mm, Weight: 2.65 kg

• Purpose: To verify instrument accuracy or perform recalibration if the device has suffered impact or requires verification.
• Usage: The pad is placed on a flat, non-magnetic surface. The KT-10 sensor is centered directly on top of the calibration pad.
• Steps:
  1. Start the KT-10 in free air (away from metal objects) to take a "free air" measurement.
  2. Place the KT-10 sensor on the center of the calibration pad.
  3. Activate the measurement, ensuring the reading matches the nominal value written on the pad.
• Types:
  • Low/Standard Pad: Suitable for standard KT-10 models.
  • High Value Pad: Only for KT-10 models with the "Plus" upgrade.
• Care: Store in the included protective leather case to prevent damage and contamination.
